It all starts with the liner

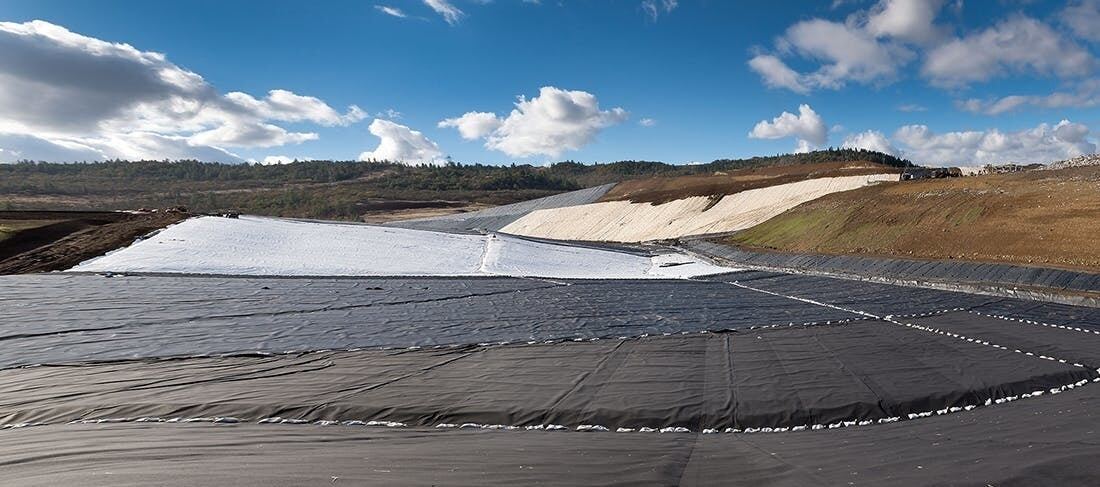

In 1998, construction began on Cell #2, a fully-lined facility with an engineering design that exceeds U.S. Environmental Protection Agency standards.

This state-of-the-art liner system includes layers of 60-mil-thick textured HDPE (high density polyethylene plastic) materials, geosynthetic clay liner and a leachate collection and removal system that removes the liquid from decomposing trash. Each lined cell has approximately four years of capacity.

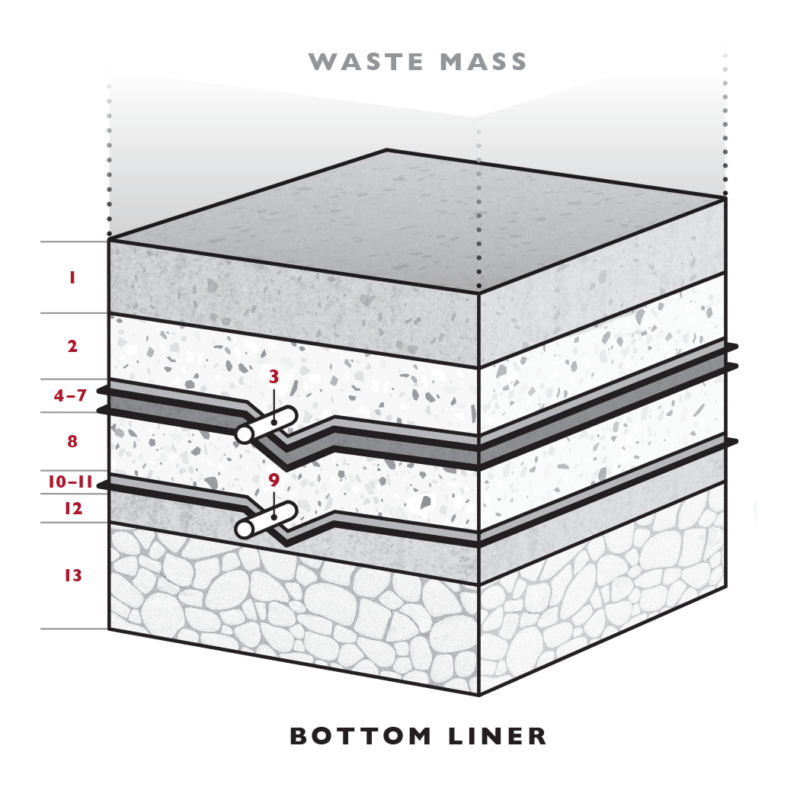

Exploring the liner from top to bottom

At Dry Creek Landfill, the liner is an engineering marvel that is comprised of 13 distinct layers of material. Here’s a look at the different layers:

  1. Operations Layer
  2. Primary Leachate Drainage Layer
  3. Primary Leachate Collection Pipe
  4. Geotextile Cushion
  5. Primary Geomembrane
  6. Geosynthetic Clay Liner
  7. Vapor Barrier (Geomembrane)
  8. Secondary Leachate Drainage Layer
  9. Secondary Leachate Collection Pipe
  10. Geotextile Cushion
  11. Secondary Geomembrane
  12. Prepared Subgrade
  13. Native Ground
DCL Liner illo1 numbered 20 09 09
